SPX APV Delta DE3
Applying the SPX APV Delta DE3
The SPX APV Delta DE3 double seat valve is available in three versions:
- Standard DE3 Shut off valve
- Delta DEU3 Changeover valve
- Delta DET3 Tankoutlet valve

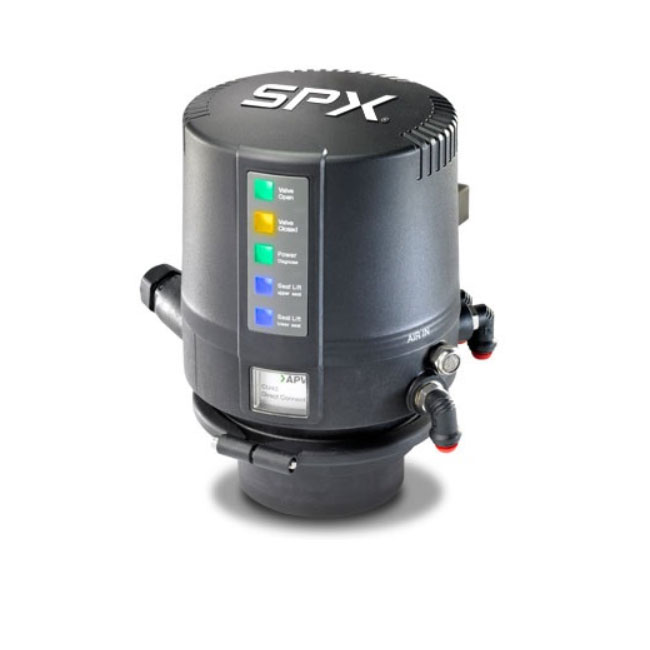

The SPX APV double seat valve Delta DE3 is an EHEDG-approved valve and can be used for applications where a "seat lifting" is not required. The Delta DE3 can be used in all kinds of applications, such as food and pharmaceutical industries. Delta DE3 is perfect for installation in hygienic applications where two media are has to be separated. Delta DE3 will be cleaned while cleaning the pipes and the leak chamber is cleaned by means of the built-in nozzle. The valve can be supplied with an SPX APV Control Unit which has connections for the PLC system including: Direct Wired, ASI-Bus, Profibus or DeviceNet. The actuator is completely maintenance free and has a warranty of five years. Moreovere, the valve is made for a "Normally Closed" application.
| Articlenr. | Description | Dimensions | Stock |
|---|---|---|---|
|
33536188AP
|
Double seat valve Delta DE3
DE31 (24) 1.5" EPDM 316L
|
1,5" (ø 38,1 mm)
|
|
| Articlenr. | Description | Dimension | Elastomer | Stock |
|---|---|---|---|---|
|
33530903AP
|
Spare part DE3
Shaft bearing EPDM
|
|
|
|
|
33630909AP
|
Spare part D3
Piston DN40/1.5"
|
|
|
|
|
33530904AP
|
Spare part Delta D2
Seal kit DN150 EPDM
actuated
|
|
|
|
|
33530008AP
|
Servicekit double seat valve
DE3 1,5-3"/NW40-65 EPDM
|
|
|
|
|
33530015AP
|
Servicekit double seat valve
DE3 4"/NW80-100 EPDM
|
|
|
|
|
33536901AP
|
Spare part Delta DE3
Stop screw
complete
|
|
|
|
|
33998002AP
|
Maintanance tool
middle shaft gasket DE+DA 1.5"-3"
|
|
|
|
|
33530115AP
|
Servicekit double seat valve
DEU3 4"/NW80-100 EPDM
|
|
|
|
|
33630907AP
|
Spare part Delta D3 valve
Safety nut
|
|
|
|
|
33536908AP
|
Spare part Delta DE32
Body DN50 316
|
|
|
|
|
33998004AP
|
Maintanance tool
middle shaft gasket DE+DA DN125/150
|
|
|
|
|
33536904AP
|
Spare part Delta DE3
Seal seat 4" HNBR
|
|
|
|
Material |
|
| Product in contact with parts | AISI 316L / 1.4404 |
| ID finish | Ra 1,6 μm |
| Other stainless steel parts | AISI 304 / 1.4301 |
| Standard Seals | EPDM (PTFE) |
| Max. operating pressure | 10 bar (5 bar against seal) |
| Sizes | EN-10357 series A and series D (OD BS4825) |
| Optional seals | HNBR or FPM (Viton) |
| Valve | 2-piece stainless steel |
Driving |
|
| Required air pressure | 6 bar |
| Spring closing / Spring opened | Spring closed |
| With integrated lift drive | No |
Operating |
|
| Closed stand mixproof valve | n.a. |
| Valve seal | Double seal |
| Visual leak detection | yes |
| Cleanable leak room | Separate CIP connection |
| Upper valve cleanable | Yes |
| Under valve cleanable | Yes |
| Leak proof shifting | Yes |
| Balanced valve | Yes , under and below |
Maintenance |
|
| House connection | Welded |
| Revision / disassembly | In line upper demountable |
| Special tools necessary | Yes for the seals |
