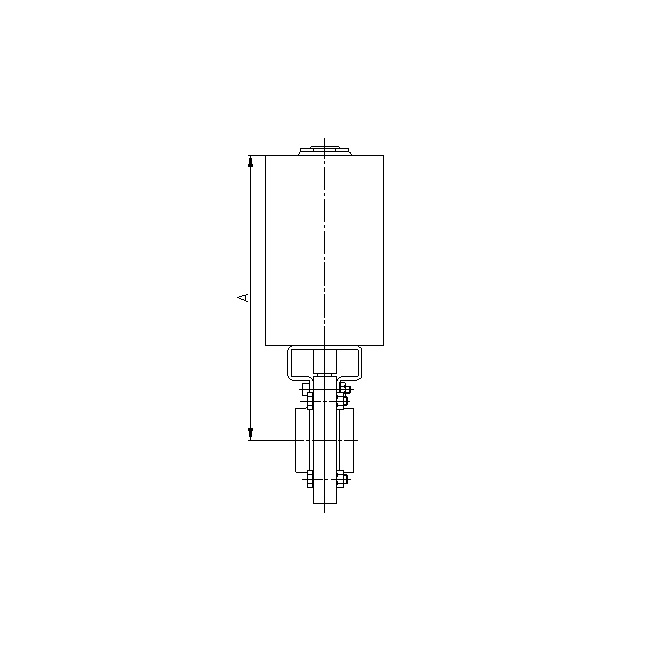

M&S SV04 AO/AC
M&S SV04 AO/AC
M&S SV04 AO/AC
M&S SV04 AO/AC
M&S SV04 AO/AC

M&S SV04 pneumatically operated air open / air closed

Applying the M&S Butterfly Valve SV04

The M&S Butterfly Valve SV04 is the latest generation butterfly valve from M&S Armaturen and meets all current requirements. The seal shape and shaft construction with bushes are compared to the previous model ('95 and '98). On top of these characteristics the valve has designed conform EHEDG. Technically, the valve meets all requirements and can even with the T-profile seal, to be used for full vacuum. The SV04 has a good ability to be dismantled.

S.K.S. performs the valve without operating as a stock item and can be combined with the correct entry with all ministries. The valves and seals are marked and equipped with numbers, size and batch number. A complete valve 3.1B certificate is possible. All the seals are made of EN-1935 and FDA approved materials. The flexibility of M&S Armaturen makes it possible to produce the valves completely to customer requirements (special connectors or mounting dimensions).

The M&S butterfly valve is the first one in the whole world with a DIN 11864 / DIN 11853 thread connections. That makes the SV04 compatible for ultra hygienic processes.

In addition, M&S Armaturen has a multiway or leak detection execution. Unique features of the M&S butterfly valve SV04 are:

  • conform EHEDG (including flange connection)
  • Unique manual handle
  • Compact design
  • Simple and safe construction for mounting position report
  • Compatible with previous versions (Type 95 and 98)
  • Internal roughness <0.8 µm
  • Duplex (robust) lantern to build actuator
  •  Available in sizes DN15 - DN200 and 1" - 4"
  • Distinctive look
  • DIN 11864 thread connection
  • DIN 11853 thread connection

Filter
Articlenr. Description Dimensions Material type Connection Elastomer Stock
25123702MS
SV04 W/W DN15 PO (1) AO/AC HNBR 304
SV04 W/W DN15 PO (1) AO/AC HNBR 304
M&S butterfly valve SV04 Weld / Weld DN15 (19) 1.4307 (304L) HNBR Including actuator PAMS-1 Air open / air closed Stainless steel 304 Prepared for indication: yes, M12 Prepared for control unit: yes
DN15 (ø 19 mm)
304 (L)
Weld / Weld
HNBR
25123703MS
SV04 W/W DN20 PO (1) AO/AC HNBR 304
SV04 W/W DN20 PO (1) AO/AC HNBR 304
M&S butterfly valve SV04 Weld / Weld DN20 (23) 1.4307 (304L) HNBR Including actuator PAMS-1 Air open / air closed Stainless steel 304 Prepared for indication: yes, M12 Prepared for control unit: yes
DN20 (ø 23 mm)
304 (L)
Weld / Weld
HNBR
25123704MS
SV04 W/W 1" PO (1) AO/AC HNBR 304
SV04 W/W 1" PO (1) AO/AC HNBR 304
M&S butterfly valve SV04 Weld / Weld 1" (25,40) 1.4307 (304L) HNBR Including actuator PAMS-1 Air open / air closed Stainless steel 304 Prepared for indication: yes, M12 Prepared for control unit: yes
1" (ø 25,4 mm)
304 (L)
Weld / Weld
HNBR
25123705MS
SV04 W/W DN25 PO (1) AO/AC HNBR 304
SV04 W/W DN25 PO (1) AO/AC HNBR 304
M&S butterfly valve SV04 Weld / Weld DN25 (29) 1.4307 (304L) HNBR Including actuator PAMS-1 Air open / air closed Stainless steel 304 Prepared for indication: yes, M12 Prepared for control unit: yes
DN25 (ø 29 mm)
304 (L)
Weld / Weld
HNBR
25123707MS
SV04 W/W DN32 PO (1) AO/AC HNBR 304
SV04 W/W DN32 PO (1) AO/AC HNBR 304
M&S butterfly valve SV04 Weld / Weld DN32 (35) 1.4307 (304L) HNBR Including actuator PAMS-1 Air open / air closed Stainless steel 304 Prepared for indication: yes, M12 Prepared for control unit: yes
DN32 (ø 35 mm)
304 (L)
Weld / Weld
HNBR
25123708MS
SV04 W/W 1,5" PO (1) AO/AC HNBR 304
SV04 W/W 1,5" PO (1) AO/AC HNBR 304
M&S butterfly valve SV04 Weld / Weld 1,5" (38,10) 1.4307 (304L) HNBR Including actuator PAMS-1 Air open / air closed Stainless steel 304 Prepared for indication: yes, M12 Prepared for control unit: yes
1,5" (ø 38,1 mm)
304 (L)
Weld / Weld
HNBR
25123709MS
SV04 W/W DN40 PO (1) AO/AC HNBR 304
SV04 W/W DN40 PO (1) AO/AC HNBR 304
M&S butterfly valve SV04 Weld / Weld DN40 (41) 1.4307 (304L) HNBR Including actuator PAMS-1 Air open / air closed Stainless steel 304 Prepared for indication: yes, M12 Prepared for control unit: yes
DN40 (ø 41 mm)
304 (L)
Weld / Weld
HNBR
25123710MS
SV04 W/W 2" PO (1) AO/AC HNBR 304
SV04 W/W 2" PO (1) AO/AC HNBR 304
M&S butterfly valve SV04 Weld / Weld 2" (50,80) 1.4307 (304L) HNBR Including actuator PAMS-1 Air open / air closed Stainless steel 304 Prepared for indication: yes, M12 Prepared for control unit: yes
2" (ø 50,8 mm)
304 (L)
Weld / Weld
HNBR
25123711MS
SV04 W/W DN50 PO (1) AO/AC HNBR 304
SV04 W/W DN50 PO (1) AO/AC HNBR 304
M&S butterfly valve SV04 Weld / Weld DN50 (53) 1.4307 (304L) HNBR Including actuator PAMS-1 Air open / air closed Stainless steel 304 Prepared for indication: yes, M12 Prepared for control unit: yes
DN50 (ø 53 mm)
304 (L)
Weld / Weld
HNBR
25123712MS
SV04 W/W 2,5" PO (1) AO/AC HNBR 304
SV04 W/W 2,5" PO (1) AO/AC HNBR 304
M&S butterfly valve SV04 Weld / Weld 2,5" (63,50) 1.4307 (304L) HNBR Including actuator PAMS-1 Air open / air closed Stainless steel 304 Prepared for indication: yes, M12 Prepared for control unit: yes
2,5" (ø 63,5 mm)
304 (L)
Weld / Weld
HNBR
25123713MS
SV04 W/W DN65 PO (1) AO/AC HNBR 304
SV04 W/W DN65 PO (1) AO/AC HNBR 304
M&S butterfly valve SV04 Weld / Weld DN65 (70) 1.4307 (304L) HNBR Including actuator PAMS-1 Air open / air closed Stainless steel 304 Prepared for indication: yes, M12 Prepared for control unit: yes
DN65 (ø 70 mm)
304 (L)
Weld / Weld
HNBR
25123714MS
SV04 W/W 3" PO (1) AO/AC HNBR 304
SV04 W/W 3" PO (1) AO/AC HNBR 304
M&S butterfly valve SV04 Weld / Weld 3" (76,10) 1.4307 (304L) HNBR Including actuator PAMS-1 Air open / air closed Stainless steel 304 Prepared for indication: yes, M12 Prepared for control unit: yes
3" (ø 76,1 mm)
304 (L)
Weld / Weld
HNBR
Articlenr. Description Dimension Elastomer Stock
27900120
Mounting br. MS BFV-DN65/BV-DN50
Mounting br. MS BFV-DN65/BV-DN50
Bracket M&S butterfly valve Classic DN65 / 2,5" Butterfly valve BaseCom DN65 M&S ball valve DN50 Prepared for 2 x M12 indication Stainless steel 304
27833029MS
Act MS AOAC DN15-65/1"-2,5"
Act MS AOAC DN15-65/1"-2,5"
M&S actuator PAMS-0 Butterfly valve SV04 DN15-50 / 1"-2" Butterfly valve BaseCom DN15-50 Air open / air closed Stainless steel 304 Prepared for indication: no Prepared for control unit: yes
27100257MS

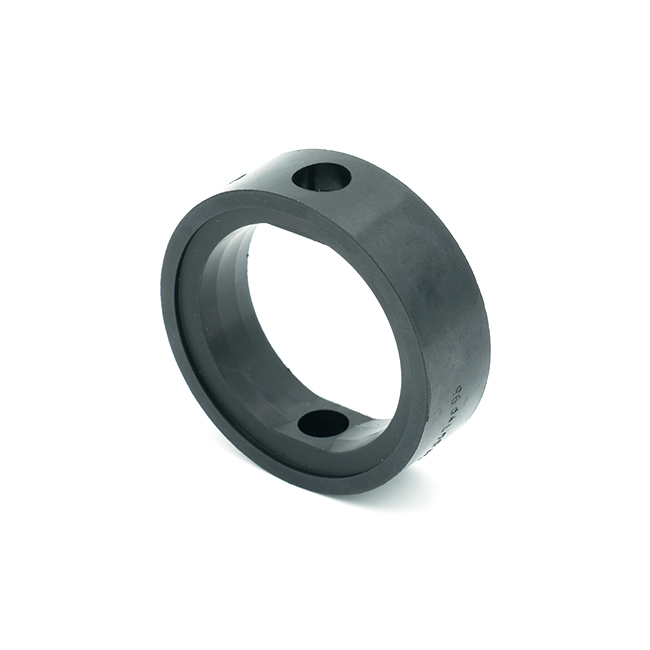

BV MS gasket type98 DN 32 FKM
BV MS gasket type98 DN 32 FKM
Butterfly valve gasket SV04/98 DN32 FKM (Viton)
25833370MS
BV MS counter flange DN200 304
Spare part butterfly valve classic 304 Counter flange for flange DN200
27138104MS
SP MS valve disc 1 " 316L
Butterfly valve part SV04/95 Valve disc 1" 316L
27100288MS

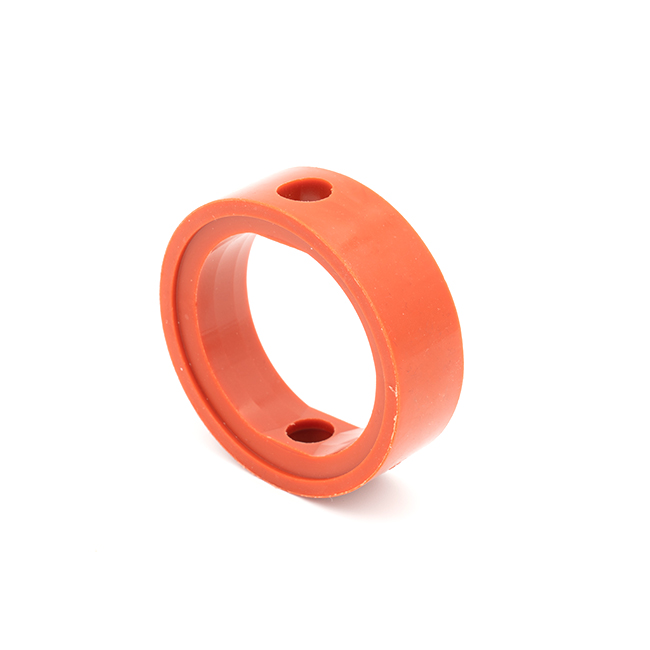

BV MS gasket type98 DN 65 EPDM
BV MS gasket type98 DN 65 EPDM
Butterfly valve gasket SV04/98 DN65 EPDM
27500286MS
Servicekit MS SV04 F/F DN50 EPDM
Servicekit butterfly valve Type '98 & SV04 NW50 EPDM F/F
27138109MS
SP MS valve disc DN 40 316L
Butterfly valve part SV04/98 Valve disc DN40 316L
27134169MS
Mount br MS DN125-150
M&S bracket Butterfly valve SV04 DN125-150 Actuator PAMS-2 Prepared for 2 x M12 indication Stainless steel 304
27100289MS
BV MS gasket type95 3 " EPDM
BV MS gasket type95 3 " EPDM
Butterfly valve gasket SV04/95 3" EPDM
27134113MS
SP MS valve dic DN65 304
Butterfly valve part SV04/98 Valve disc DN65 304L
27900097MS
SP MS pr sw 12mm nick plug D25-150
Proximity Switch brass nickle housing 12mm M12x1 with plug connection 24VDC-NO-PNP-3-L.-IP 67-Sn=4mm
Material

Product contact parts Stainless steel 304(L) W.St. 1.4301 or 316L 1.4404
ID finish Ra <0.8 μm
Other stainless steel parts W.St. 1.4301 / AISI 304
Standard seal EPDM
Type of seal (Valve) T-profile
Type of seal (Flange) DIN11864-A
Bearing bushing Yes, lower and upper are the same
Max. working pressure 10 bar
Min. working pressure Vacuum
Max. temperature Depends on elastomer
Sizes Weld/Weld DN15 - DN150, 1” - 4” and ISO 33,7 - 114,3
DIN sizes DIN : DN15 -150, DN200 only flange/flange
Inch sizes Inch : 1” – 4”
ISO sizes Mm : 33,7 – 114,3
Seal options EPDM, VMQ (Silicon), FKM (Viton), HNBR
Version

Connections Weld, Thread, Pointed area/Nut, Flange and Clamp ferrule
  DIN11851, DIN11853, DIN11864, DIN32676, ISO 2852
  EN1092, SMS, IDF, DS, BSP, etc.
  On requirement of the customers draw
Standard operating Manual operated (two positions)
  Adjustable stepless handle
  Hand operated with positioners
Pneumatical operating Double air, air / spring (three versions)
Required air pressure Depends on type of actuator
Positioner Standard prepaired in bracket (M12)
Options Actuator with positioner
  Electrical actuator
  Control unit
  Open/close indicator (CE)
  Kinetrol actuator
  Adjustable on demand
  Lock-out/tag-out manual operated
  ATEX
Maintenance

Revision/dissambly Between flange model can be disassembled
  Other models are shut out of revision
Special tools required No
Unique

Hand-operated Plastic head (hygienic and distinctive)
Pneumatical-operated Multi spring unit

Lantern piece Prepared for position indication
Between flange version Compact model (hygienic)
  Special version with centering
  All of the valves are tested of leackage at a pressure of 10 bar
