Kieselmann Dunos spray balls
Applying the Kieselmann Dunos Rotary Spray Balls
In addition to static spray balls, S.K.S. has the Kieselmann Dunos Rotary Spray Balls in the program. Kieselmann has the Dunos series for different applications. The rotating spray balls are an effective solution for the cleaning of tanks, silos and other industrial applications. These spray balls have, when compared to static spray balls, the advantage that they require less cleaning agent that it is placed under high pressure rotary. The spray balls can be delivered in a variety of configurations with a 90, 180, 270 and 360° operation.

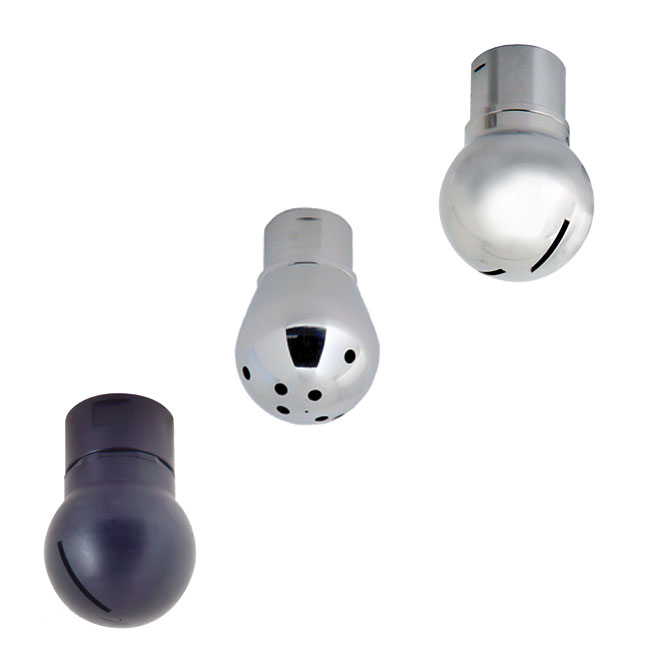

Kieselmann has three different types of rotating spray balls. The standard Dunos, the Dunos with multiple perforations and a version for aggressive media. Thye also offer these possibilities in addition to the possibility for a plug-in version. This version makes it possible to easily remove the spray ball by means of a piece of wire.
| Articlenr. | Description | Dimensions | Spray ball diameter | Spray | Connection | Stock |
|---|---|---|---|---|---|---|
|
37138604KI
|
Static spray ball
Type Dunos-S DN25 / 1" clip-on
180° upward pattern
Ball Ø64mm, consumption 14-23m³/h
|
|
64mm
|
180° upper
|
|
|
|
37138612KI
|
Static spray ball
Type Dunos-S DN15 clip-on
180° downword pattern
Ball Ø30mm, consumption 2-3m³/h
|
DN15 (ø 19 mm)
|
30mm
|
180° lower
|
Weld
|
|
|
37138622KI
|
Static spray ball
Type Dunos-S DN15 clip-on
270° upword pattern
Ball Ø30mm, consumption 3-5m³/h
|
DN15 (ø 19 mm)
|
30mm
|
270° upper
|
Weld
|
|
|
37138624KI
|
Static spray ball
Type Dunos-S DN25 clip-on
270° upword pattern
Ball Ø64mm, consumption 11-17m³/h
|
DN25 (ø 29 mm)
|
64mm
|
270° upper
|
Weld
|
|
|
37138628KI
|
Static spray ball
Type Dunos-S DN40 clip-on
270° upword pattern
Ball Ø64mm, consumption 20-33m³/h
|
DN40 (ø 41 mm)
|
64mm
|
270° upper
|
|
|
