Inoxpa Kiber

Inoxpa Progressive Cavity Pump Kiber KS/KSF + KST/KSFT

The Inoxpa KS/KSF pumps, or Inoxpa Progressive Cavity Pump Kiber, are sanitary progressive cavity pumps. Due to their design, they are self-priming and reversible pumps that can suck from a maximum height of 7 meters. These pumps transfer products of low and high viscosity as well as products containing particles.

They are widely used to pump edible oils, wine, concentrates and beverages in general as well as viscous food products such as jam and marmalade, pasta, paté, etc. In the cosmetics industry, these pumps are used in applications involving various cosmetic products such as soaps, gels and creams.

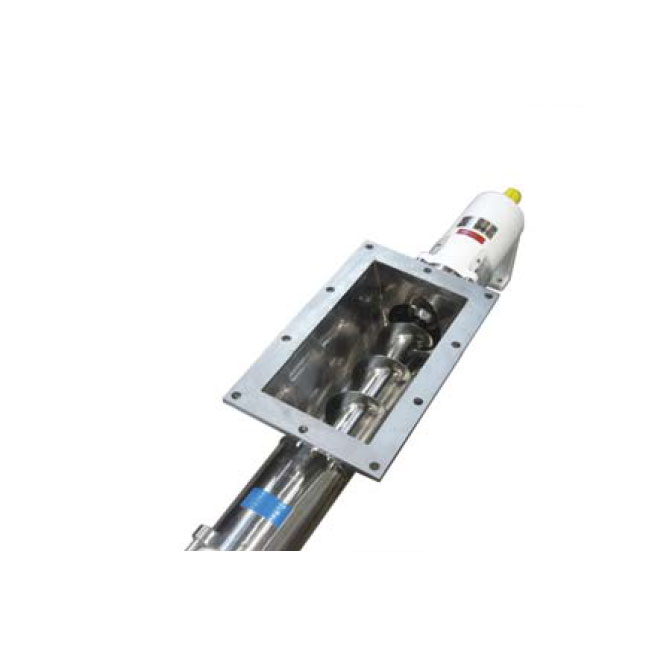

The KST/KSFT pumps, thanks to the hopper and auger, are suitable for pumping high viscosity products, doughs, pastes and liquids with suspended particles.

Operating principle

The friction between the rotor and the stator creates a vacuum in the inlet area promoting the entry of the product into the pump. The rotor accompanies the product along the cavities created between the rotor and the stator up to the outlet.

Design and features

Versions: bare shaft construction with bearing support (KS) or close-coupled construction with direct coupling to the drive (KSF)
Single internal mechanical seal: EN 12756 L1K
Standard connections: DIN 11851
Open transmission (hygienic design)
Eccentric outlet
Painted white

For questions or more information about this product please contact our product specialists.

Articlenr.	Description	Dimension	Elastomer	Stock
IN1D800024006006	Connecting rod KS-60/80 pump Spare part KS-60/80 pump Connecting rod
IN1G1091478055	Mech.seal Kiber 60/80 SiC/C/FPM Spare part Inoxpa Kiber mechanical seal (pos.08) Kiber 60/80, SiC/C/FPM
34236303IN	Sp.prtset Kiber 155SD SIC/SIC Viton Kiber wormpump Seal set K-155SD Sil.Carb./Sil.Carb. Viton
IN8JD31004078	Gasket (80) Kiber 40/50 FPM Spare part Inoxpa Kiber gasket (pos.80) Kiber 40/50, FPM
IN8D8124004006TR	Connect.rod reinf.KiberKS(F) 40/50 Spare part Inoxpa Kiber Connecting rod reinforced Kiber KS(F) 40/50
IN1D80220060411K	Stator KS-60 Single st. NBR white Spare part Inoxpa Kiber stator (pos.22) KS-60, Single st., NBR white
34236309IN	Sp.prtset Kiber 265SD SIC/SIC Viton Kiber wormpump Seal set K-265SD Sil.Carb./Sil.Carb. Viton
IN1D900027114513	Pin Kiber pomp 140/145-SD pos 27A Spare part Kiber pump Type 140/145-SD Pin-Bolt pos.27A
IN8GD310201478	Kit 08,80 Kiber 20 SiC/C/FPM Spare part Inoxpa Kiber mechanical seal + pumphouse gasket (pos 08, 80) Kiber 20, SiC/C/FPM
34700623	Sparepart Kiber stator black K-165 Parts for Kiber pump Stator black for K-165 SD Hypalon
IN1D80220030411K	Stator KS-30 Single st. NBR white Spare part Inoxpa Kiber stator (pos.22) KS-30, Single st., NBR white
IN8GD310604478	Kit 08,80 Kiber 60/80 SiC/SiC/FPM Spare part Inoxpa Kiber mechanical seal + pumphouse gasket (pos 08, 80) Kiber 60/80, SiC/SiC/FPM
