QualiTru Septas
The Qualitru sampling SEPTA is designed to take a sterile and aseptic sample of the product in your process with a needle. This offers you the opportunity to assess your product without the risk of infection from outside.
The SEPTA is suitable in combination with the special Qualitru sampling fittings. The SEPTA has 7 or 12 different channels. This means you are always assured of a unique sample of your product. The 12-port version is for products with a higher viscosity, for example on a tank. Qualitru sampling SEPTA cassettes are for processes with a temperature up to 148 degrees. The seals are manufactured from FDA approved silicone material.
Qualitru has various options to collect your sample. For example, there are various aseptic "sample bags" ranging from 250 ml to 7 liters. The "single sampler" gives you the possibility to take quickly a sample from 2 to 59 ml. And with the dosing pump you can speed up the process or take several samples.
Below we give you a schematic overview of a traditional milking process.
| Articlenr. | Description | Qualitru part | Stock |
|---|---|---|---|
|

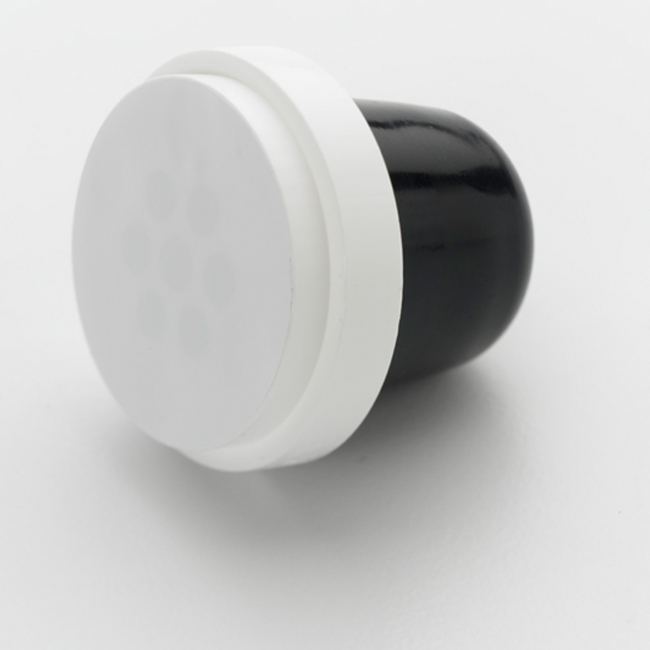

QU00110021
|
Trustream7 Septa
Sampling low viscous products
7 sample port
Outside silicone / inside EPDM
Temp. 150°C/300°F
< 2023 Version (US)
100 per case
|
Septa
|
|
|

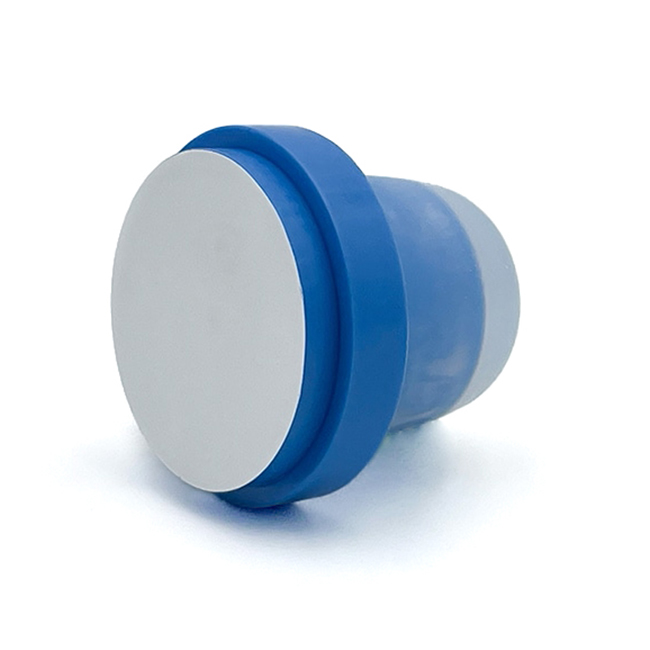

QU00110041
|
Trustream7 Septa
Sampling low viscous products
7 sample port
Outside silicone / inside EPDM
Max. temperature 87°C / 190°F
> 2023 Version (EU)
100 per case
|
Septa
|
|
|
QU00110064
|
Trustream12 Septa
Sampling high viscous products
12 sample port
Ouside silicone / inside EPDM
Temp. 121°C/250°F
< 2023 Version (US)
50 per case
|
Septa
|
|
|
QU00110074
|
Trustream12 Septa
Sampling high viscous products
12 sample port
Ouside silicone / inside EPDM
Temp. 150°C/300°
< 2023 Version (US)
50 per case
|
Septa
|
|
