KEOFITT Ingold

KEOFITT CLASSIC INGOLD Sampling Valve

The KEOFITT CLASSIC INGOLD sampling valve is specifically designed to fit Ingold® bio-connectors. Ideal for sampling medium viscosity products with viscosities ranging from 0-1000 cP and particle sizes up to 2 mm in diameter, this valve meets the majority of liquid sampling needs. It can also handle more viscous liquids, though sampling time may increase depending on process pressure.

This versatile valve is employed across various industries, including breweries, dairies, pharmaceuticals, and biotechnology, for sampling products such as:

Medical Solutions
Filtered Beer
Creams and Lotions
Unprocessed Milk

In addition to selecting the appropriate valve body and head, users can choose from three different membrane materials: Silicone, EPDM, and PTFE.

Available accessories include quick couplings for connecting tubing, piping, and more.

Read more Read less

Log in or create an account to see prices and stock.

Articlenr.	Description	Part	Connection	I/O connections	Operating

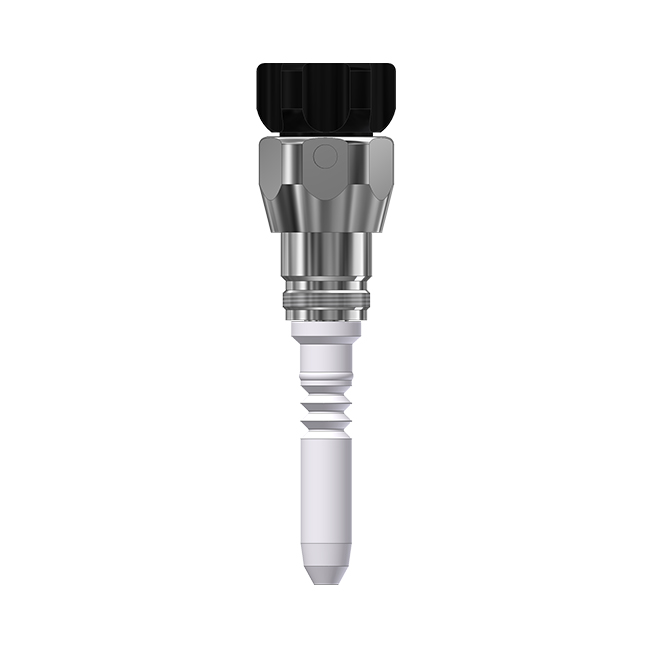

32538153	Sample valve KEOFITTValve head type Ingold Turn-knob type H PTFE-TFM1600Standard 40mm length Sample valve KEOFITT Valve head type Ingold Turn-knob type H PTFE-TFM1600 Standard 40mm length	Valve head			Turnknob

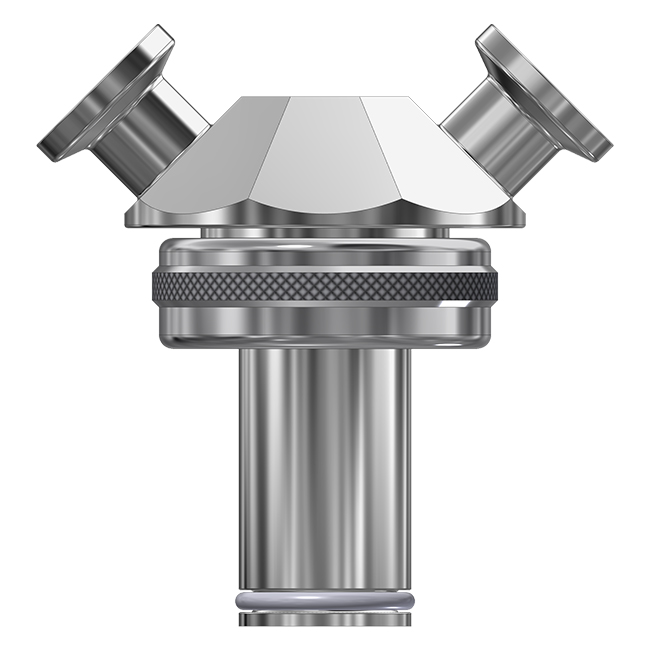

32538253	Ingold I40 316 Sil. 2x clamp long KEOFITT sampling valve body Type Ingold I40 I/O connection(s): 2x Clamp 1/2" Ø25mm Long 1.4404 (316L) Silicone Without controls	Valve body	Ingold	Clamp 1/2" Ø25
32538254	Ingold I40 316 Sil. 2x clamp KEOFITT sampling valve body Type Ingold I40 I/O connection(s): 2x Clamp 1/2" Ø25mm 1.4404 (316L) Silicone Without controls	Valve body	Ingold	Clamp 1/2" Ø25
KE320002	Ingold I52 316L Sil. 2x clamp long KEOFITT sampling valve body Type Ingold I52 I/O connection(s): 2x Clamp 1/2" Ø25mm Long 1.4404 (316L) Silicone Without controls	Valve body	Clamp	Clamp 1/2" Ø25
KE320007	Ingold I52 316L Sil. 2x Weld KEOFITT sampling valve body Type Ingold I52 I/O connection(s): 2x Weld end 1/2" (12,7 x 1,65) 1.4404 (316L) Silicone Without controls	Valve body	Ingold	Weld 1/2" (12,7x1,65)
KE320041E	Ingold I52 Head Type H EPDM KEOFITT valve head Ingold Type H (I52) - Turn knob 1.4404 (316L) EPDM	Valve head			Turnknob
KE325543	Ingold I52 Head Type Q PTFE KEOFITT valve head Ingold Type Q (I52) - Lever handle 1.4404 (316L) PTFE	Valve head			Lever handle
KE325544	Ingold I52 Head Type N PTFE KEOFITT valve head Ingold Type N (I52) - Pneumatic 1.4404 (316L) PTFE Air open / Spring closed	Valve head			Pneumatic actuator
