Kieselmann inline modules

Durable and efficient sight glass illumination in combination with the Kieselmann In-line housing

The LED illuminated sight glass from Kieselmann offers many advantages over the conventional Halogen versions. Apart from delivering extended life and very low operating current they also generate virtually no heat during operation. Conventional halogen lamps have long been associated with product burn-on due to the heat which is generated during normal use. A situation made worse by the close proximity of the lamp to the glass. This burn-on simply will not occur with the Kieselmann LED illuminator.

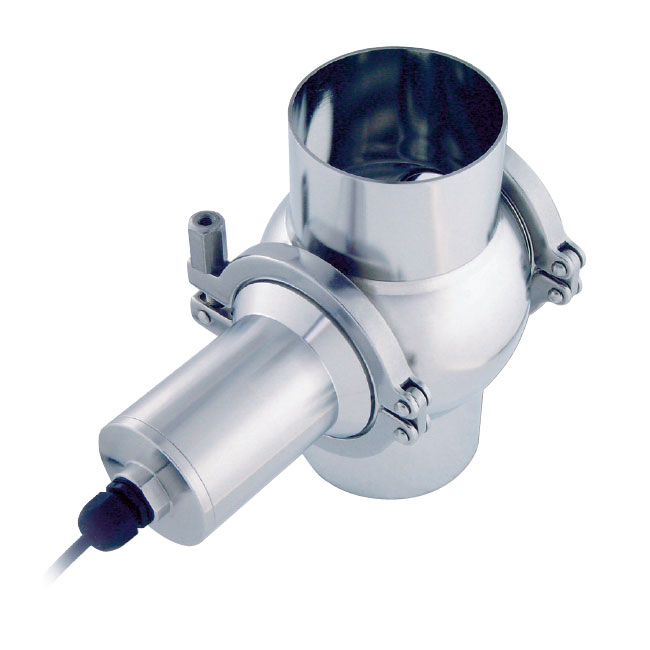

The LED illuminator is available in two versions. The first version is a separate package where the self contained illuminator is housed in a stainless steel enclosure with a built-in switch and mounting bracket. This unit is suitable for mounting to a variety of sight glasses providing illumination for both Inline and vessel mounted applications. The second is a bespoke package that forms part of the Kieselmann lnline hygienic instrument housing system.

Kieselmann In-line housing for measuring and process equipment

The Kieselmann ln-line housing program provides the best solution for the hygienic installation of process and instrumentation equipment. The spherical shaped lnline housing with its hygienic designed clamp connections ensures excellent CIP/SIP performance at any time. Various inserts for process and instrumentation purposes are available. The universal design of the clamp connections allows a solution based flexibility for instrumentation and guarantees the interchangeability and backfitting of various inserts.

A universal connection for all kinds of applications

The in-line housing program is available with a number of Kieselmann products and is compatible with all leading manufacturers' instruments. The Kieselmann ln-line housing system is specifically designed and meticulously manufactured to enable the user to stay informed without impacting product quality.

We offer the following components for the In-line system:

Sight glass with blanking plate
Through vision sight glass
Sight glass with LED illumination unit- energy-saving technology

Illuminant service life of LED (approx. 20.000 h)

Clamp connection

lnline instrumentation

Variable and exchangeable

Articlenr.	Description	Brand	Dimensions	Material type	Connection
35028009KI	Inline housing DN40 1x blindnut 316 Kieselmann Inline Housing DN40 1.4404 / HNBR 1x Blind flange 2x O-ring 2x clamp	Kieselmann	DN40 (ø 41 mm)
35028013KI	Inline housing DN65 1x blindnut 316 Kieselmann Inline Housing DN65 1.4404 / HNBR 1x Blind flange 2x O-ring 2x clamp	Kieselmann	DN65 (ø 70 mm)
35028110KI	In-line module 2" 316 HNBR In-Line housing Kieselmann House 2" connection N68mm, 316L, HNBR 2 x blank, 2x gasket and clamp	Kieselmann	2" (ø 50,8 mm)
35038004KI	Kieselmann Inline housing 1" 316 Kieselmann In-Line housing 1" (25,4 x 1,65) 1.4404 (316L) EPDM 1x Blind plate 2x O-ring 2x Clamp	Kieselmann	1" (ø 25,4 mm)
35038005KI	Inline module DN25 1x blindnut 316 Kieselmann Inline Housing DN25 1.4404 / EPDM 1pc Blind flange, 2pcs. O-ring and 2pcs clamp	Kieselmann	DN25 (ø 29 mm)
35038008KI	Inline housing 1.5" 1x blindnut 316 Kieselmann Inline Housing 1.5" (38) 1.4404/EPDM 1pc Blind flange, 2pcs. O-ring and 2pcs clamp	Kieselmann	1,5" (ø 38,1 mm)	316 (L)	Clamp / Clamp
35038009KI	Inline housing DN40 1x blindnut 316 Kieselmann Inline Housing DN40 1.4404 / EPDM 1pc Blind flange, 2pcs. O-ring and 2pcs clamp	Kieselmann	DN40 (ø 41 mm)
35038010KI	In-line module 2" 1xblindpl. 316 In-Line housing Kieselmann House 2" connection N68mm, 316L, EPDM 1 x blank, 2x gasket and clamp	Kieselmann	2" (ø 50,8 mm)
35038011KI	Inline housing DN50 1x blindnut 316 In-Line housing Kieselmann DN50, 316L, EPDM 1x blank, 2x gasket and clamp	Kieselmann	DN50 (ø 53 mm)
35038012KI	Varivent Inline housing 2.5" 316 Varivent in-line 1.4404 House 2½" connection N 68mm 1 single blank, 2 clamps, 2 gaskets	GEA Tuchenhagen	2,5" (ø 63,5 mm)
35038013KI	Inline housing DN65 1x blindnut 316 In-Line housing Kieselmann DN65, 316L, EPDM 1x blank, 2x gasket and clamp	Kieselmann	DN65 (ø 70 mm)
35038014KI	Varivent In-Line house 3" 1.4404 Varivent in-line 1.4404 House 3" connection N 68mm 1 single blank, 2 clamps, 2 gaskets		3" (ø 76,1 mm)

Nominal width for pipe connections	DN25 – 150 1" - 4" Welding connection for pipe DIN EN 10357 series A DIN 11866 series A EN 10357 seried D Others available on stock
Material	1.4404 / AISI 316L
Seals	EPDM, HNBR, FKM (Viton)
Apparatus connections	Mit Clamp-Verbindung
Surface product wetted parts	Ra < 0.8 mm
