T-pieces for pharmaceutical applications

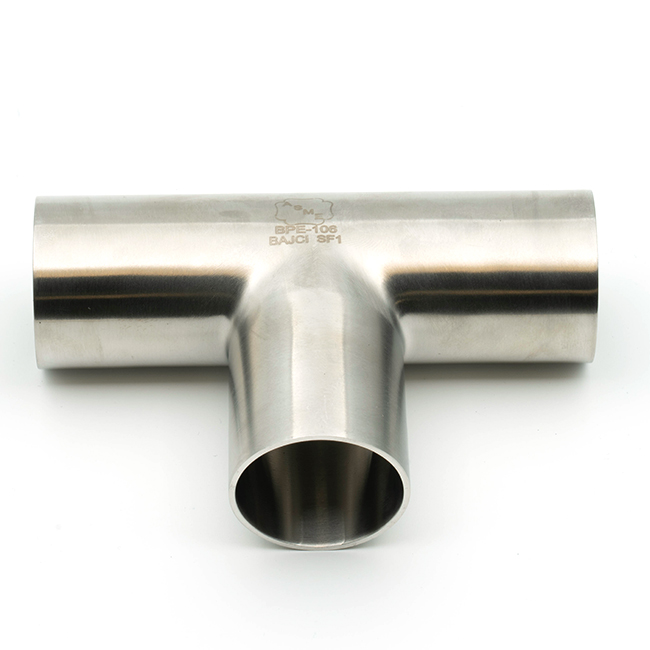

Tee BPE SF1 1/2" 12,7x1,65 316L
Tee BPE SF1 1/2" 12,7x1,65 316L

T-pieces for pharmaceutical applications

In the norm the technical specifications are described regarding to the occurring weld fittings and couplings. The fittings are described with the SF code and could vary in finish grade 1 to 6. Also for the fittings the SF 1 and SF 4 are chosen as the standard. The difference between these 2 variants is the way of obtaining the internal surface finishing. SF1 = Ra max. 0,5 µm > pulled or mechanical polished. SF4 = Ra max. 0,375µm > polished and afterwards electrolytic polished.

Filter
Articlenr. Description Type Dimensions Dimensions 2 DIN11865 Dimensions 2 ASME Stock
04531405MS
T-pce 11865TS H3o 29x1,5 1.4435
T-pce 11865TS H3o 29x1,5 1.4435
Pharmaceutical welding tee Welding tee long (TL) DN25 (29,00 x 1,50) 1.4435 (316L) H3o Internal surface Ra ≤ 0,8µm DIN11865 Reihe-A
Equal
DN25 (ø 29 mm)
04537400TC
Tee BPE SF4 12,7x1,65 316L
Tee BPE SF4 12,7x1,65 316L
Pharmaceutical welding tee Weld / Weld / Weld DT-4.1.2-1 / B7WWW 0,5" (12,70 x 1,65) 1.4404 (316L) SF4 Internal surface Ra ≤ 0,38µm Electropolished ASME BPE Certified
Equal
1/2" (ø 12,7 mm)
04537401TC
Tee BPE SF4 19,05x1,65 316L
Tee BPE SF4 19,05x1,65 316L
Pharmaceutical welding tee Weld / Weld / Weld DT-4.1.2-1 / B7WWW 0,75" (19,05 x 1,65) 1.4404 (316L) SF4 Internal surface Ra ≤ 0,38µm Electropolished ASME BPE Certified
Equal
3/4" (ø 19,05 mm)
04537404TC
Tee BPE SF4 25,4x1,65 316L
Tee BPE SF4 25,4x1,65 316L
Pharmaceutical welding tee Weld / Weld / Weld DT-4.1.2-1 / B7WWW 1" (25,40 x 1,65) 1.4404 (316L) SF4 Internal surface Ra ≤ 0,38µm Electropolished ASME BPE Certified
Equal
1" (ø 25,4 mm)
04537408TC
Tee BPE SF4 38,1x1,65 316L
Tee BPE SF4 38,1x1,65 316L
Pharmaceutical welding tee Weld / Weld / Weld DT-4.1.2-1 / B7WWW 1,5" (38,10 x 1,65) 1.4404 (316L) SF4 Internal surface Ra ≤ 0,38µm Electropolished ASME BPE Certified
Equal
1,5" (ø 38,1 mm)
04537410TC
Tee BPE SF4 50,8x1,65 316L
Tee BPE SF4 50,8x1,65 316L
Pharmaceutical welding tee Weld / Weld / Weld DT-4.1.2-1 / B7WWW 2" (50,80 x 1,65) 1.4404 (316L) SF4 Internal surface Ra ≤ 0,38µm Electropolished ASME BPE Certified
Equal
2" (ø 50,8 mm)
04537412TC
Tee BPE SF4 63,5x1,65 316L
Tee BPE SF4 63,5x1,65 316L
Pharmaceutical welding tee Weld / Weld / Weld DT-4.1.2-1 / B7WWW 2,5" (63,50 x 1,65) 1.4404 (316L) SF4 Internal surface Ra ≤ 0,38µm Electropolished ASME BPE Certified
Equal
2,5" (ø 63,5 mm)
04537414TC
Tee BPE SF4 76,2x1,65 316L
Tee BPE SF4 76,2x1,65 316L
Pharmaceutical welding tee Weld / Weld / Weld DT-4.1.2-1 / B7WWW 3" (76,20 x 1,65) 1.4404 (316L) SF4 Internal surface Ra ≤ 0,38µm Electropolished ASME BPE Certified
Equal
3" (ø 76,2 mm)
04537418TC
Tee BPE SF4 101,6x2,11 316L
Tee BPE SF4 101,6x2,11 316L
Pharmaceutical welding tee Weld / Weld / Weld DT-4.1.2-1 / B7WWW 4" (101,60 x 2,11) 1.4404 (316L) SF4 Internal surface Ra ≤ 0,38µm Electropolished ASME BPE Certified
Equal
4" (ø 101,6 mm)
04537421TC
Tee BPE SF4 152,4x2,77 316L
Tee BPE SF4 152,4x2,77 316L
Pharmaceutical welding tee Weld / Weld / Weld DT-4.1.2-1 / B7WWW 6" (152,40 x 2,77) 1.4404 (316L) SF4 Internal surface Ra ≤ 0,38µm Electropolished ASME BPE Certified
Equal
6" (ø 152,4 mm)
04537755TC
Tee red. BPE SF4 3/4"x1/2" 316L
Tee red. BPE SF4 3/4"x1/2" 316L
Pharmaceutical reduced welding tee Weld / Weld / Weld DT-4.1.2-6 / B7RWWW 0,75" x 0,50" (19,05 x 12,70) 1.4404 (316L) SF4 Internal surface Ra ≤ 0,38µm Electropolished ASME BPE Certified
Reducing T-piece long
3/4" (ø 19,05 mm)
1/2" (ø 12,7)
04537756TC
Tee red. BPE SF4 1"x1/2" 316L
Tee red. BPE SF4 1"x1/2" 316L
Pharmaceutical reduced welding tee Weld / Weld / Weld DT-4.1.2-6 / B7RWWW 1" x 0,5" (25,40 x 12,70) 1.4404 (316L) SF4 Internal surface Ra ≤ 0,38µm Electropolished ASME BPE Certified
Reducing T-piece long
1" (ø 25,4 mm)
1/2" (ø 12,7)
